Product Details

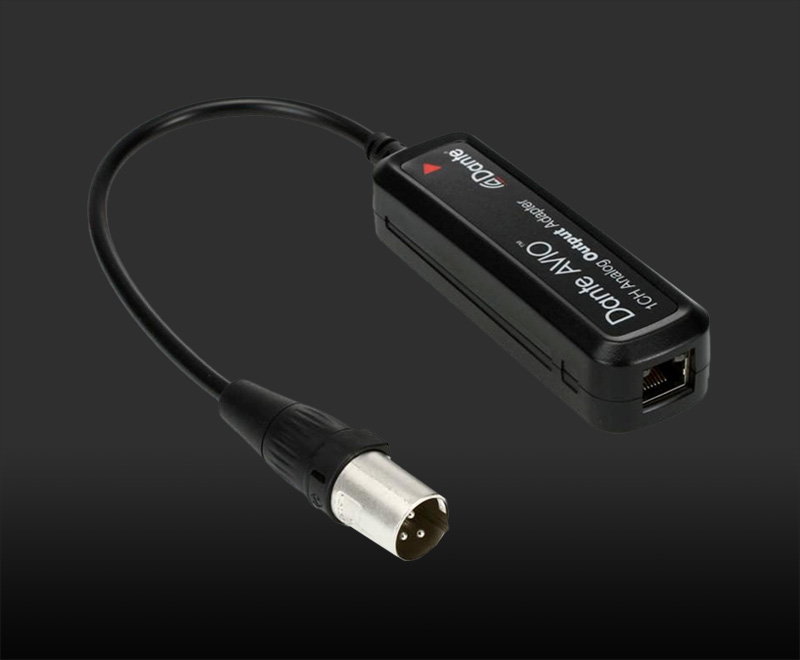

Dante AVIO Analog Output Adapter 0x1

Dante AVIO ANALOG OUTPUTS. Let you drive analog line-level products you already own from any Dante-connected system. 1 channel version.

Product Details
Dante AVIO Analog Adapters allow you to use the audio gear you already own with your Dante network. Don’t abandon trusted compressors, equalizers or analog power amplifiers - adapt them to the world of audio networking with Dante AVIO.
Dante AVIO Analog Adapters are available as balanced line-level single or dual-channel input or output adapters, with high-quality XLR connectors.
Use the Analog Dante AVIO Adapters to add Dante networking to analog amplifiers, powered loudspeakers, signal processors, music players or any other analog audio device, for hum-free digital signal distribution throughout your audio network.

Analog Output use cases:
  • Connect analog powered speakers to your Dante audio network
  • Send audio to analog power amplifiers over a Dante audio network
  • Create easy drop-points for connecting cry rooms and overflow areas to a Dante network
  • Connect non-networked hearing aid loop amplifiers to your Dante audio network
Dante AVIO Analog Output Adapter 0x1 is a Dante to 1 channel analog output converter
Technical Specification
Max signal level (balanced) +24dBu / +4dBu / 0dBu
0dBV /-10dBV
Frequency Response20Hz to 20kHz (-/+0.5dB)
Impedance 150 Ohm balanced
75 Ohm unbalanced
Dynamic Range> 100dB
Signal to Noise Ratio> 100dB
Total Harmonic Distortion< 0.01% at +4dBu
ConnectorsRJ45 & 1 XLR-M
Power Class 1 802.3af PoE
Asyn­chronous Sample Rate Conversion -
Sample Rates44.1, 48, 96 kHz
Bit Depths 24
Dante Device Latency 1, 2, or 5ms (configurable using Dante Controller)
Network Transport Dante Audio over IP, AES67 RTP
USB -
