Product Details

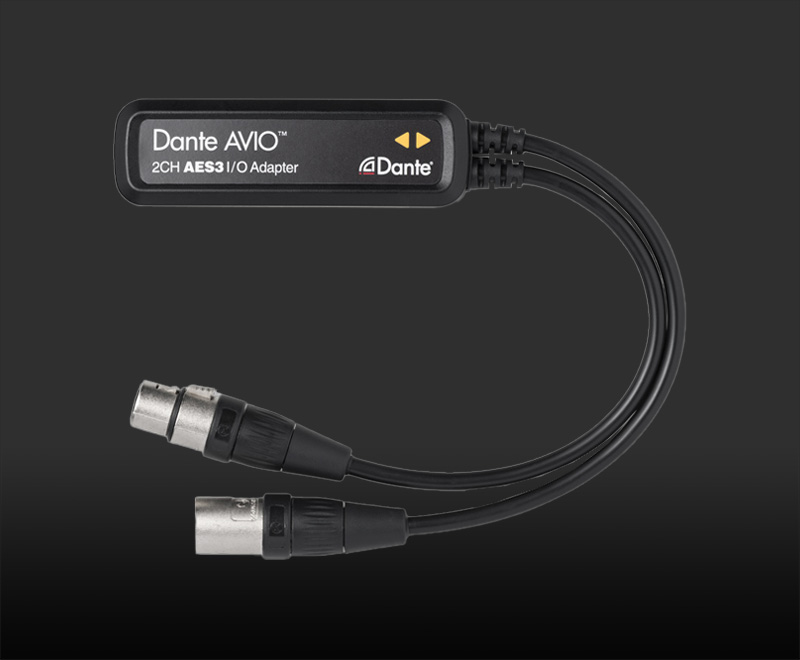

Dante AVIO AES3 IO Adapter 2x2

2 Channels AES XLR <> Dante Converter

Dante AVIO AES3/EBU Adapter lets you use your favorite digital audio gear on a Dante audio network.

Product Details
The Dante AVIO AES3/EBU Adapter supports 2x2 channels, with high-quality XLR input and output connectors and built-in asynchronous sample rate conversion.
Use the AES3 Dante AVIO Adapters to add Dante networking to amplifiers, speaker processors, mixing consoles, video systems and more.

AES3 use cases:
  • Interface with SDI video systems using AES3 audio
  • Put your AES3-compatible amplifiers and powered speakers on your Dante audio network
  • Connect AES3-compatible DSPs to a Dante network
  • Connect AES3-compatible microphone preamplifiers to a Dante network
Dante AVIO AES3 IO Adapter 2x2 is a 2 Channels AES XLR to and from Dante Converter
Technical Specification
Max signal level (balanced) -
Frequency Response -
Impedance 110 Ohm balanced
Dynamic Range> 135dB
Signal to Noise Ratio -
Total Harmonic Distortion
ConnectorsRJ45,1 XLR-M, 1 XLR-F
Power Class 1 802.3af PoE
Asyn­chronous Sample Rate Conversion YES
Sample Rates44.1, 48, 96 kHz
Bit Depths 24
Dante Device Latency 1, 2, or 5ms (configurable using Dante Controller
Network Transport Dante Audio over IP, AES67 RTP
USB -
